SPM simulator: choosing a type of a sample material

In this page, we choose a type of a sample material that is examined in the SPM experiment.
Please choose the one from the following three types:
(1)high polymers and soft matters
(2)organic compounds
(3)surfaces of crystals of metals, semiconductors, and non-organic compounds
If you want to process digital images obtained by the SPM experiments and do not want to perform numerical simulations, please choose an item of "Digital processing of SPM images" at the end of this page.
If you have decided an experimental method such as AFM, STM, and so on, please click here. Otherwise, please read the following contents.

Which type of a sample material do you use in an experiment?

A type of a sample material	A method for an experiment	A characteristic length of measurements	Examples
High polymers and soft matters	AFM (Atomic Force Microscope)	Micron	DNA, proteins, collagen, anti-angiogenic peptides, rubber, materials with viscosity and surface tension, organic materials on the HOPG plate
Organic compounds	AFM (Atomic Force Microscope)	Angstrom	pentacene, pentacenequinone, octane, carbon nanotubes, fullerene, graphite, graphene sheets, porphyrin, butadiene, dichlorobenzene, phthalocyanine, polyacetylene, calcite, and other small molecules
Surfaces of crystals of metals, semiconductors, and non-organic compounds	AFM (Atomic Force Microscope), STM (Scanning Tunneling Microscope), STS (Scanning Tunneling Spectroscopy), KPFM (Kelvin Probe Force Microscopy)	Angstrom	Si(111)DAS7x7, Si(001)-3x1:H, Si(001)-c(4x2), a bismuth atom on Ag(111), RuO2(110), TiO2(110), Au(001), metallic catalysts, mica

If you are not interested in the approach for classifying types of sample materials shown above and you want to process digital images obtained by SPM experiments, please visit the following page.

Digital processing of SPM images

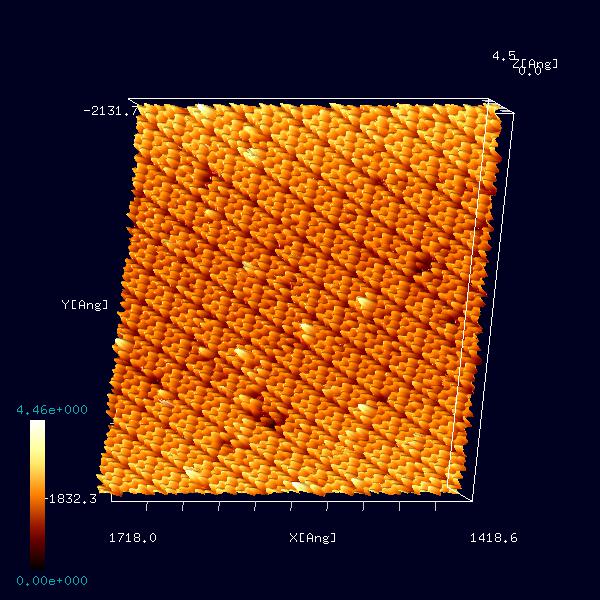

You can process images obtained with SPM experiments and numerical simulations in a digital manner as you like. You can use basic digital image processing tools, for example, the Fourier transformation, adjustment of contrast, edge detection, and noise reduction. We prepare a tool for estimating a shape of the tip from experimental data of SPM. We prepare a function to correct digital images obtained with SPM experiments using technologies of neural network learning.
